Bring your own S3

By default Amendable stores Git layer tarballs in platform S3. Pro and Platform can point those objects at a bucket you own.

Caution

Amazon S3 always uses OIDC (AssumeRoleWithWebIdentity). Static AWS access keys are rejected for provider S3. R2, MinIO, and other S3-compatible providers use STATIC_KEYS.

Which mode

Provider	Auth	Region / endpoint
Amazon S3 (S3)	OIDC	Locked to us-west-2. Client region and endpoints are ignored
Cloudflare R2 (R2)	STATIC_KEYS	You set region, endpoint_url, access key, secret
MinIO (MINIO) or OTHER	STATIC_KEYS	Same as R2. Private/link-local endpoints are rejected

Amazon S3 (OIDC)

1. Copy the setup payload

UI: Settings → Bring-your-own storage

API (needs API_STORAGE):

curl -sS https://api.amendable.io/v1/storage-buckets/oidc-setup \
  -H "access-token: $AMENDABLE_TOKEN"

Fields you must use as-is:

Field	Example
issuer	https://oidc.amendable.io
audience	amendable-byo-storage
subject	account:<your-user-uuid>
region	us-west-2
sample_trust_policy	IAM trust JSON with the correct hostname

The issuer hostname must match the environment you registered the bucket with. Always copy from this payload. Staging uses https://stage.oidc.amendable.io. See Environments.

subject is account: plus your user UUID, not your username.

2. Bucket

• Region us-west-2
• Block public access
• SSE-S3 is enough
• Prefix, default amendable/
• Do not use names that look like platform buckets (amendable-repos-*, amendable-download-*)

3. IAM OIDC provider and role

Terraform

The module in examples/terraform/byo-s3 creates:

• the bucket
• the OIDC provider for oidc.amendable.io
• a role whose trust policy matches aud and sub
• S3 permissions on {prefix}* (canary + layers + multipart)

cd examples/terraform/byo-s3
terraform init
terraform apply \
  -var aws_account_id=123456789012 \
  -var bucket_name=my-amendable-layers \
  -var amendable_user_id=YOUR_USER_UUID

The thumbprint in that example is the one used against the current issuer chain. If AWS starts rejecting it, refresh from the issuer TLS chain (SHA-1 of the top intermediate CA).

AWS CLI

# Values from GET /v1/storage-buckets/oidc-setup
ISSUER_HOST=oidc.amendable.io
BUCKET=my-amendable-layers
ACCOUNT=123456789012
SUB=account:YOUR_USER_UUID

aws s3api create-bucket \
  --bucket "$BUCKET" \
  --region us-west-2 \
  --create-bucket-configuration LocationConstraint=us-west-2

aws iam create-open-id-connect-provider \
  --url "https://$ISSUER_HOST" \
  --client-id-list amendable-byo-storage \
  --thumbprint-list 06b25927c42a721631c1efd9431e648fa62e1e39

Then put the sample trust policy on a new role (replace ACCOUNT_ID) and attach the S3 policy from the Terraform file (ListBucket on the prefix, object Get/Put/Delete/multipart on arn:aws:s3:::BUCKET/amendable/*).

Console

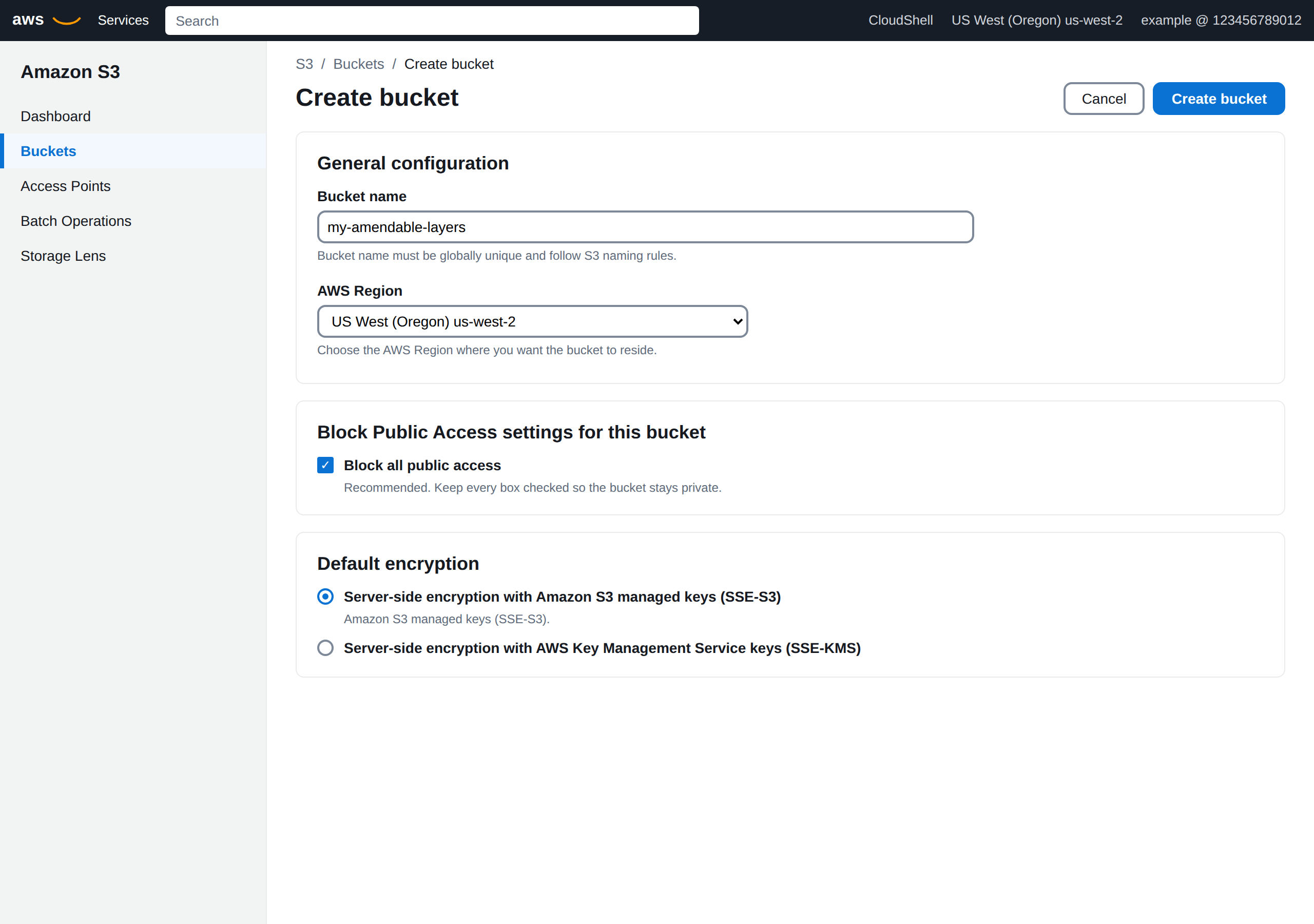

1. Create a us-west-2 bucket, block public access, default encryption.

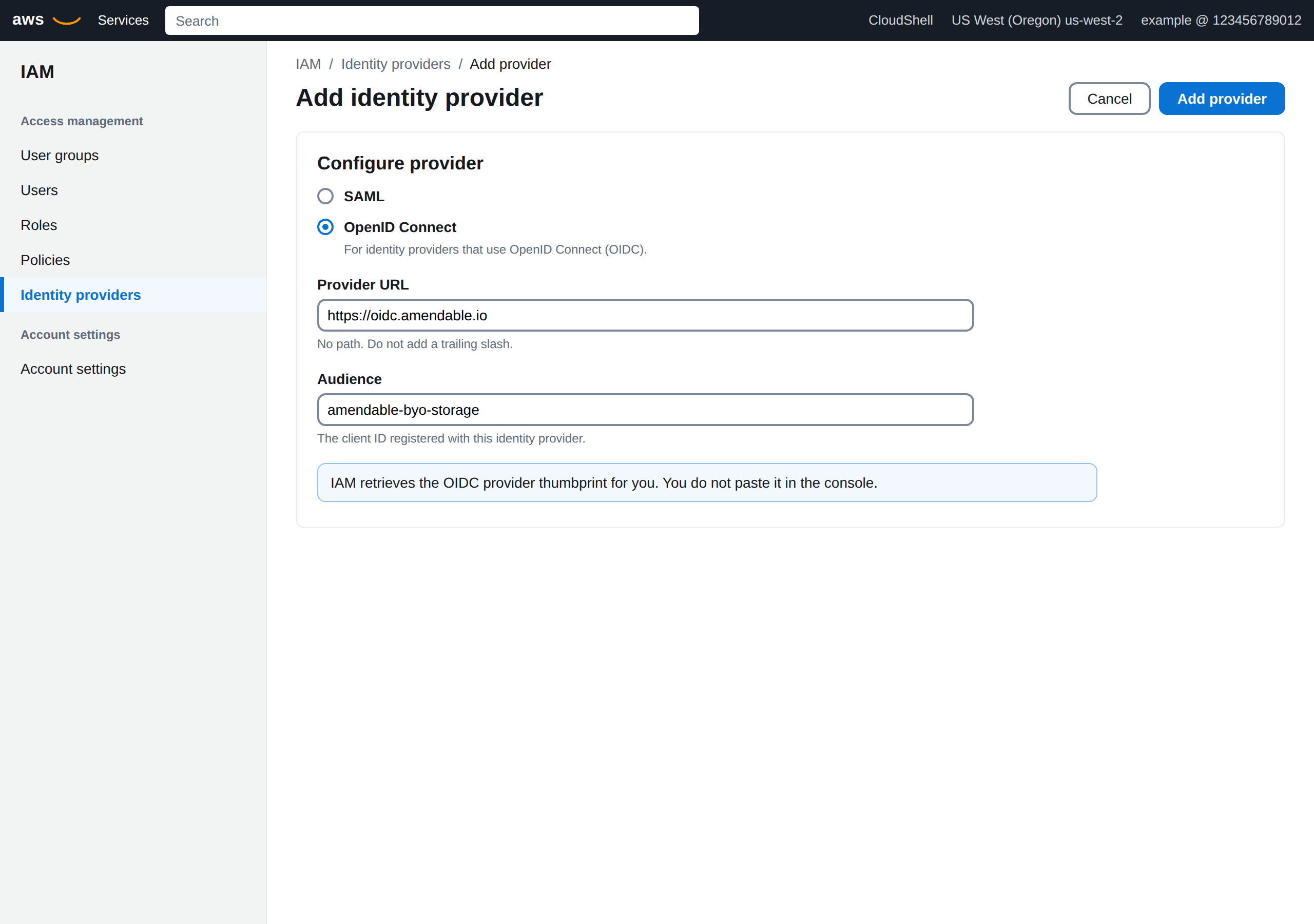

2. IAM → Identity providers → Add provider → OpenID Connect. Provider URL https://oidc.amendable.io (no path). Audience amendable-byo-storage.

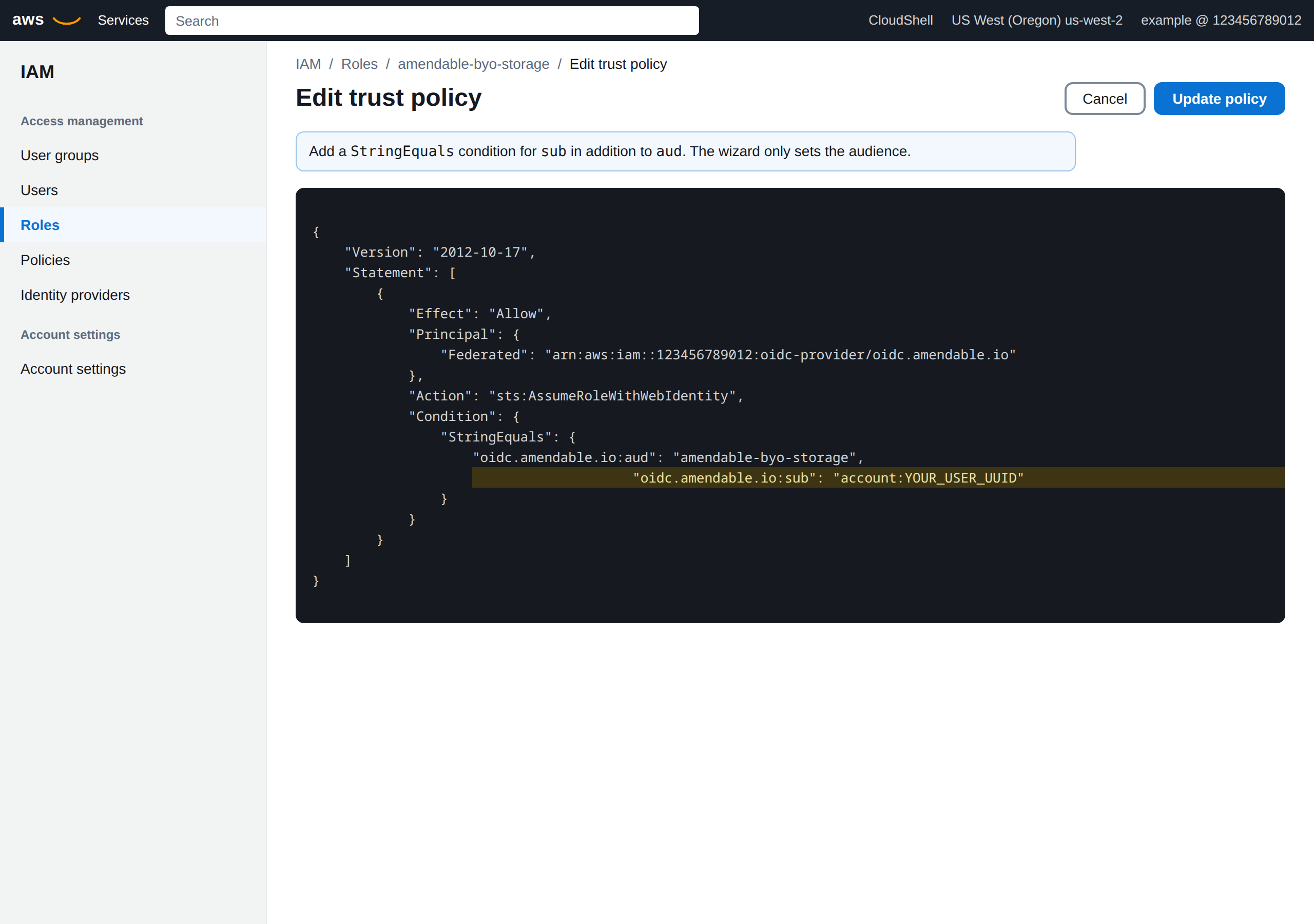

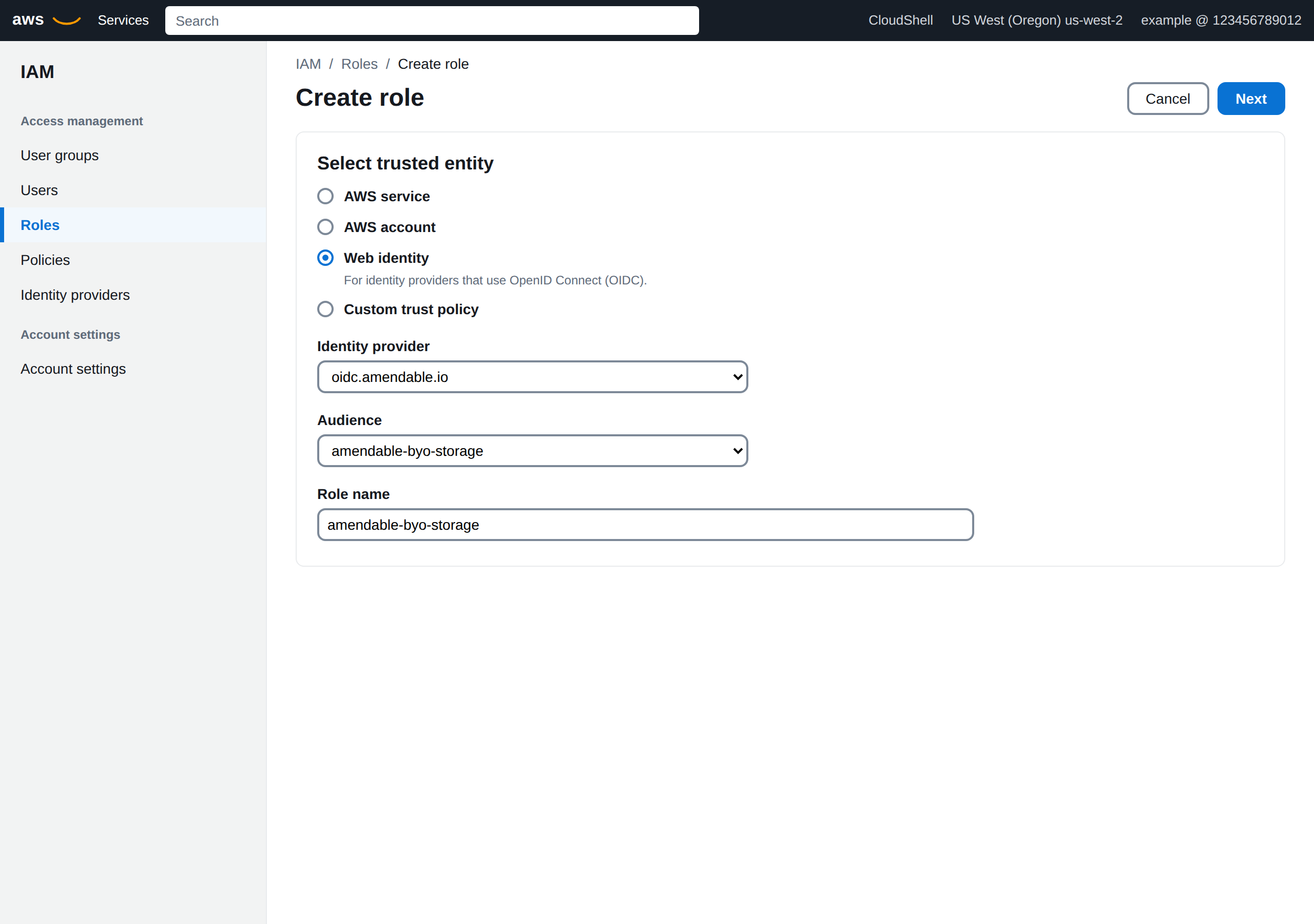

3. Create a role → Web identity → that provider and audience. Edit the trust policy so sub equals account:<uuid> from the setup payload.

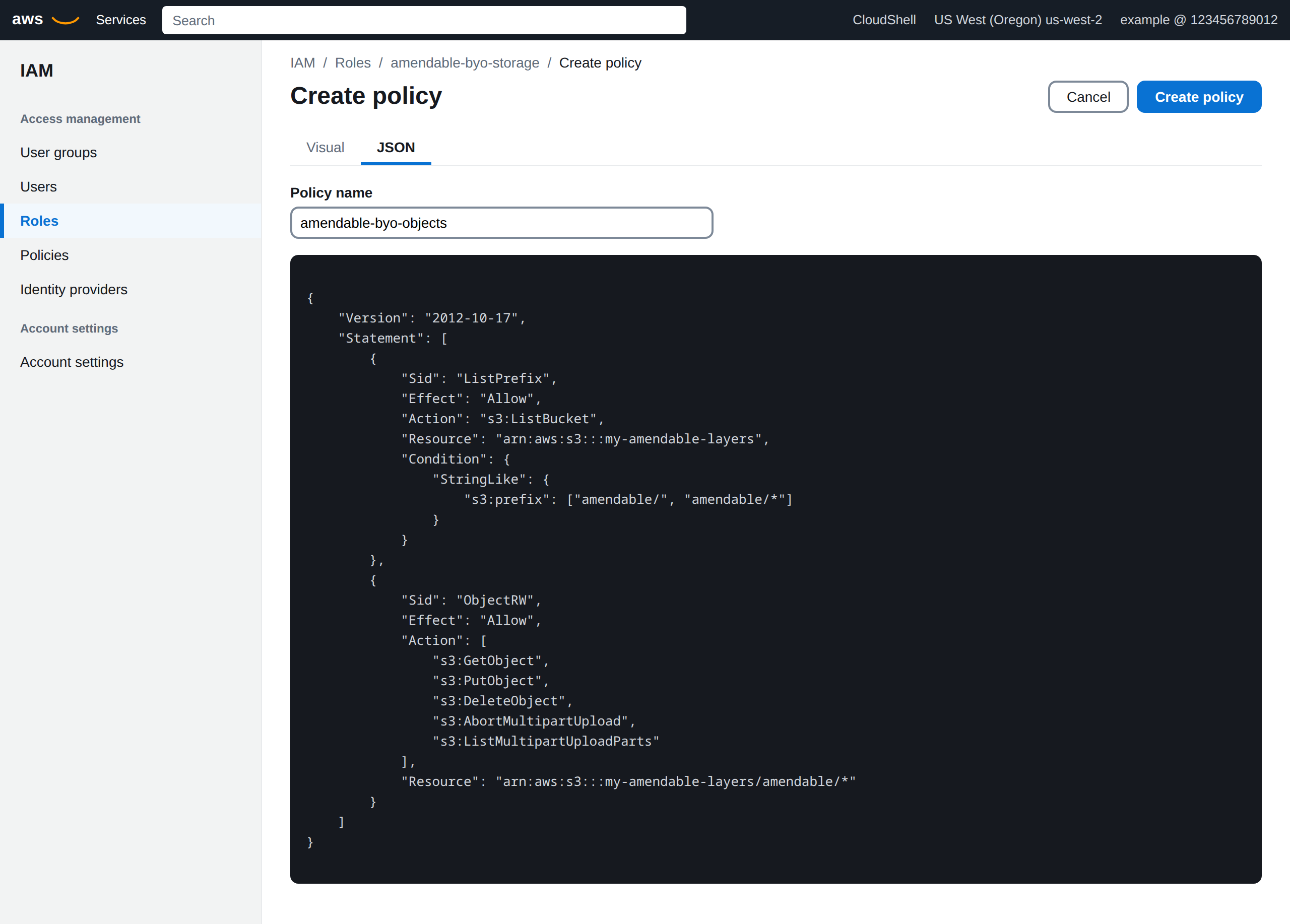

4. Attach an inline policy: s3:ListBucket on the bucket with s3:prefix amendable/*, and object read/write/delete/multipart on bucket/amendable/*.

Minimum object actions: s3:GetObject, s3:PutObject, s3:DeleteObject, s3:AbortMultipartUpload, s3:ListMultipartUploadParts.

Verify writes {prefix}.amendable-canary/{uuid}.txt (Put, Head, Delete) then uses {prefix}layers/{layer-id}.tar.gz for Git.

4. Register and verify

curl -sS -X POST https://api.amendable.io/v1/storage-buckets \
  -H "access-token: $AMENDABLE_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "prod-layers",
    "provider": "S3",
    "auth_mode": "OIDC",
    "bucket_name": "my-amendable-layers",
    "key_prefix": "amendable/",
    "role_arn": "arn:aws:iam::123456789012:role/amendable-byo-storage",
    "is_default": true
  }'

Status starts as PENDING_VERIFICATION. Then:

curl -sS -X POST \
  https://api.amendable.io/v1/storage-buckets/BUCKET_ID/verify \
  -H "access-token: $AMENDABLE_TOKEN"

Success: status is ACTIVE and last_validated_at is set. Failure: FAILED, flash or 422, and a row in Error log / GET /v1/storage-buckets/errors.

5. Bind a repository

Pass storage_bucket_id on create, or set the bucket as account default. Binding cannot change later. You cannot delete a bucket that still has repos.

R2 / MinIO (static keys)

curl -sS -X POST https://api.amendable.io/v1/storage-buckets \
  -H "access-token: $AMENDABLE_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "name": "r2-layers",
    "provider": "R2",
    "auth_mode": "STATIC_KEYS",
    "region": "auto",
    "bucket_name": "my-r2-bucket",
    "endpoint_url": "https://ACCOUNT_ID.r2.cloudflarestorage.com",
    "key_prefix": "amendable/",
    "access_key_id": "YOUR_ACCESS_KEY",
    "secret_access_key": "YOUR_SECRET",
    "is_default": true
  }'

Then verify the same way. Secrets are envelope-encrypted at rest. They are never returned after create.

What Verify does not prove

Verify checks assume-role (OIDC) and canary Put/Head/Delete. It does not prove:

• that layers/*.tar.gz objects still exist
• that GetObject on layers/ is still allowed

If you delete or overwrite layer objects, Git on a cold node can 500 (LoadImageError, S3 404, or digest mismatch). A warm node may still clone from cache. The BYO error log may stay empty. Treat layer keys as Amendable data. Do not tidy them.

After IAM changes, click Verify again. That is the check that writes a readable error.

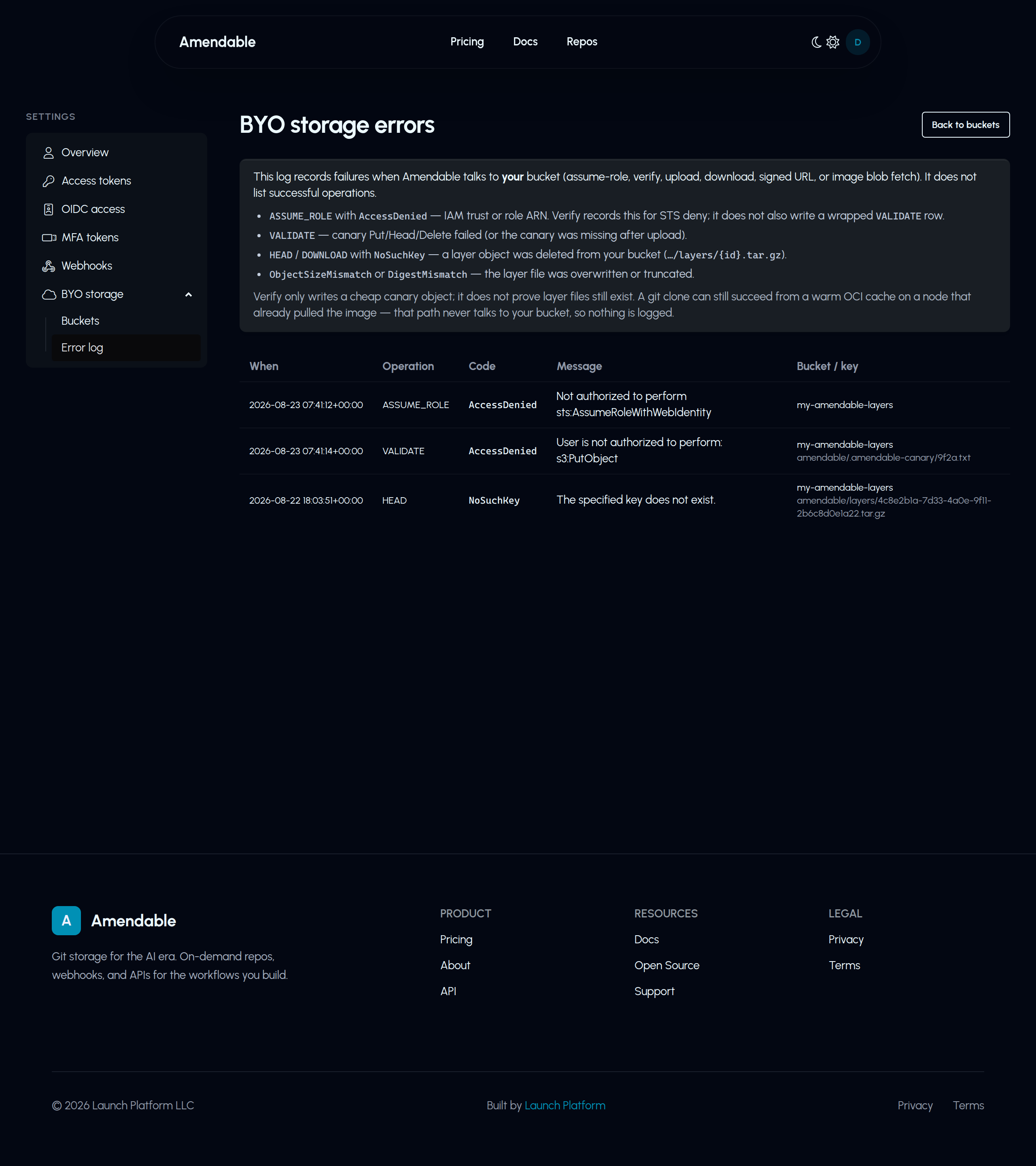

Error log

GET /v1/storage-buckets/errors and Settings → BYO storage → Error log.

Operations you will see: ASSUME_ROLE, VALIDATE, UPLOAD, and similar. Retention: 30 days / 500 rows per user.

Common Verify failures:

Symptom	Cause
AccessDenied on assume-role	Trust iss host, aud, or sub mismatch; bad role ARN
S3 AccessDenied on canary	Missing Put/Head/Delete on {prefix}*
422 OIDC required	Amazon S3 + static keys
422 bucket name invalid	Platform bucket name
403	BYO requires Pro (feature flag)
